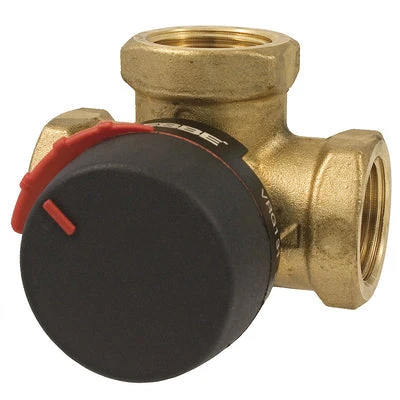

Danfoss 193B1504 ESBE 1 FNPT. 3-Way Mixing Valve 11.7cv Replaces 0

The ESBE VRG series of 3-way valves are designed to mix water to the appropriate temperature to meet the zone or system requirements within heating and cooling systems. The redesigned VRG valve replaces the MG and G series of rotary valves providing additional operational features. By either mixing or diverting, the fluid temperature leaving the valve is regulated by the VRG in either a manual operation or automatically when coupled with the ARA600 Series or 90 Series electronic motor actuator. These actuators are typically connected to an outdoor reset controller, DDC system or boilers with integrated controls.

Features:

VRG series valves are a rotary design allowing for great flexibility in field piping layout
Compact valve size
Exceptionally low internal leakage rate
Visible position indicator and knob
Easily adaptable with ESBE electronic motor actuator styles ARA600 or series 90
Suitable fluid: water (maximum 50% glycol) for closed loop heating or chilled systems

Specifications:

Product Line: ESBE VRG131
Valve Type: Mixing
Material: Brass
CV Value: 11.7
Minimum Operating Temperature: -15 F
Maximum Operating Temperature: 230 F
End 1 Connection Type: Female NPT
End 2 Connection Type: Female NPT
End 3 Connection Type: Female NPT
Product Weight: 0.7 Pounds
Size: 1
