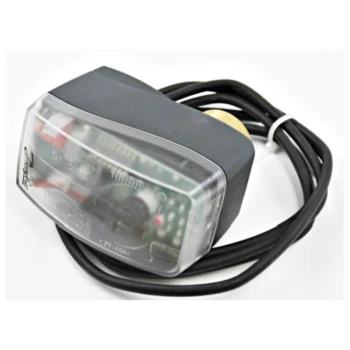

Danfoss 082H8057 Actuator AME110NL, 24V

The actuators are used together with automatically balanced combination valve type AB-QM for DN 10-32. The actuator can be used with fan coil units, induction units, small reheaters, recoolers, and zone applications in which hot/cold water is the controlled medium.

Features:

Gap detection at stem up position.
Modulating control.
Force switch-o at stem down position prevents overload of actuator and valve
No tools are required for mounting.
Maintenance-free lifetime.
Low-noise operation.
Self-positioning process.
Halogen-free cables.

Specifications:

Actuator
24 Vac
50/60 Hz
2 VA
5 Mm Stroke
Analog Control Signal
IP42
(AME 110NL)
