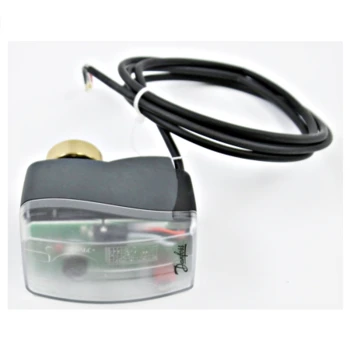

Danfoss 082H8056 Actuator, 24V, 50/60Hz

The actuators are used together with automatically balanced combination valve type AB-QM for DN 10 to DN 32. Typical applications for that products are temperature control and permanent automatic balancing on terminal units (fan-coils, chilled ceilings, air-handling units..).

Features:

Gap detection at stem-up position
3 point version
Force switch-off at stem down position prevents overload of actuator and valve
No tools are required for mounting
Maintenance-free lifetime
Low-noise operation
Halogen-free cables

Specifications:

Supply Voltage: 24 VAC
Frequency: 50/60 Hz
Power Consumption: 1VA
Maximum Stroke: 5 mm
Spindle Speed: 24 s/mm
Enclosure: IP 42
Maximum Flow Temperature: 130 AC
Ambient Temperature: 0 to 55 AC
Cable: 1.5m
