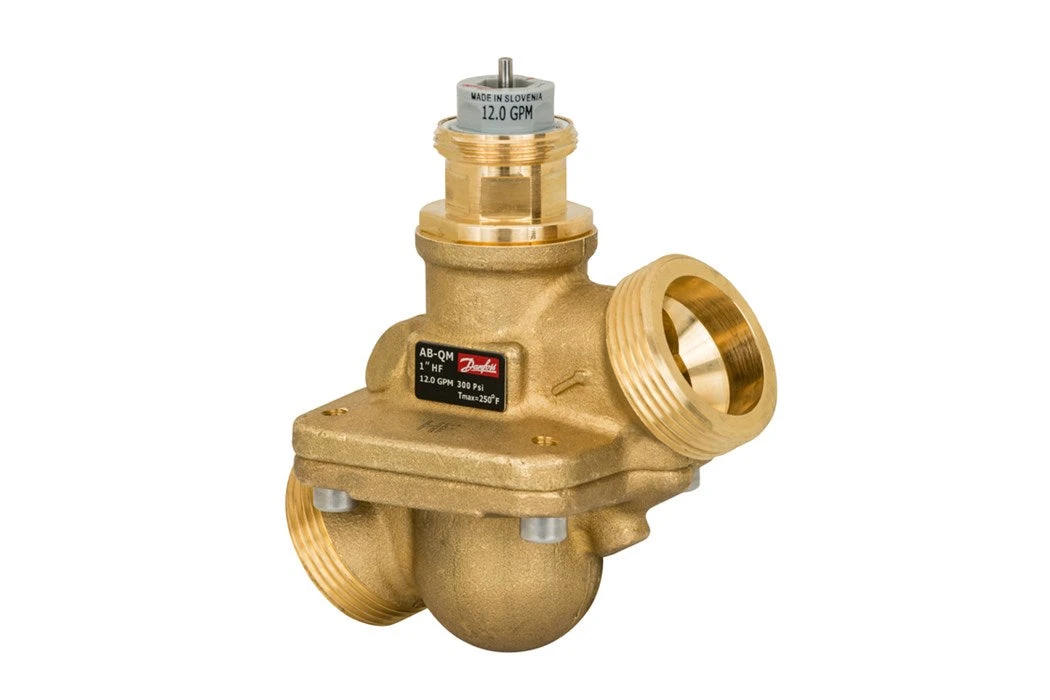

Danfoss 003Z0303 AB-QM Pressure Independent Control Valve, 3/4

The AB-QM is a versatile device that can be used as an actuated or non-actuated balance valve. AB-QM is a pressure-independent control valve with a built-in, integrated differential pressure regulator. The unique design allows the valve to be selected via required flow versus traditional Cv calculations.

Specifications:

Without P/T Plugs
Size: 3/4
Max Flow (GPM): 6.6
Diff. pressure: 3 PSI – 60 PSI
Max. working pressure: 300 PSI
Control range: Acc. to standard IEC 534 control range does to infinity as Cv characteristic is linear
Control valve characteristic: Linear (could be converted by the actuator to an equal percentage)
Leakage at 100 N: No visable leakage
For shut off function
Acc. to ISO 5208 class A – no visable leakage
Flow medium: Water and water mixtures with secondary coolants (like glycols) 2.)
for closed heating and cooling systems
Medium temperature: -15F to 250F (-10C to 120C)
Connection: Male NPT and Female solder tailpieces and gaskets or press fittings
Actuator: M30 x 1.5
